TRI-PULSER

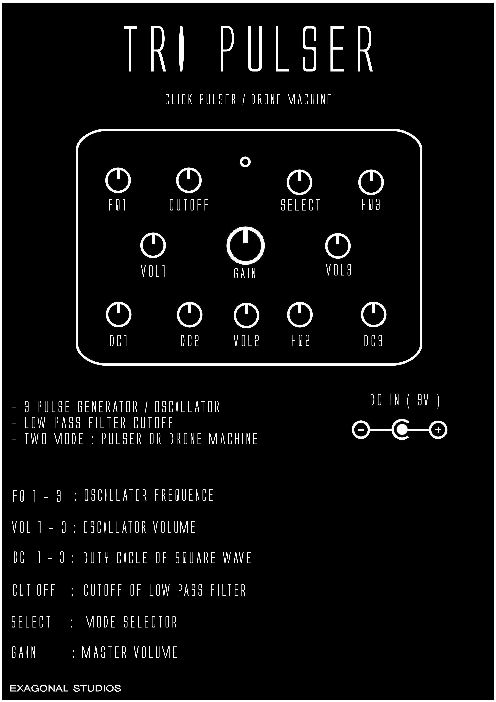

The sound machine has three oscillators / pulsers. Of each oscillator you can control volume, oscillation frequency and duty cicle, that is, the magnitude of the half wave, to obtain short pulses or square wave peaks.
This sound box can operate in two modes: the first as a glitch / click generator, the other, by reasonably increasing the frequencies oscillation of the three oscillators, allows us to use the oscillators as a drone machine.
All this can be filtered by a low pass filter that we can control the cutting frequency with the CUTOFF potentiometer.
|
|
|
|
||
|
|
|
|
|
|
||
|
TECNICAL INFO |
||

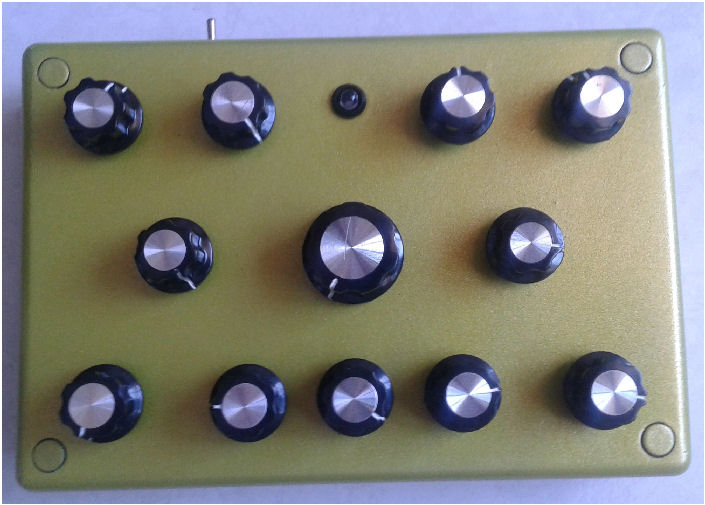

Dimensions: 178 x 122 x 36 mm Standar case : ABS Box color : acid green Knobs color : black Front panel : 1 power blue led, 11 knob, 2 positions selector Rear panel : 1 audio output jack, 9V DC jack, 1 power switch |
||
|
