REPTILE |
||
|
TOUCH-SYNTH
/ NOISE-GLITCH BOX |
||
 |
REPTILE
The sound generation of glitches,
clicks and various noises, including an oscillator, occurs
entirely through the contact and amount of hand pressure to
the 18 tactile sensors on the front panel.
The numerous possible combinations, in addition to the natural resistance and capacity that our body has, allow us to modulate and have various types of noise. In this way also the end user will be an integral part of the sound produced which will be different for each type of musician. Furthermore, nothing prevents us from
making contacts with other types of conductive materials,
such as aluminum foil, electric wires, small mass stockings
pulled out by an antenna cable, or other.
|
|
|
|
||
 |
Scenically
it allows us to have a marked visual impact, since we can use
hands, arms or other parts of the body. Several controls present allow us to choose different modes, from the most sensitive and silent to others, more noisy and with high dynamics. Basically we have two sound output modes, one for the creation of micro glitches and clicks, another more noisy and almost self-producing (in the sense that it also allows us to keep the sound once the tactile sensors are released). There is also an oscillator with relative frequency selection knob, which can be activated or not by a switch, and which can always be controlled by sensor contact. Other counter-points include the activation of capacitors that allow us to memorize the decadence of the sound once stimulated, such as a typical release of an ADSR envelope stage, which in turn can be selected in two values, high and low. These are called "MEMORIES" and there are two variants, so 4 switches in all. Finally, a last command allows us to activate the noisiest HARSH NOISE MODE that allows us to create powerful carpets and modulable noise textures, as well as with touch, even with a potentiometer.
|
|
|
|
||
|
TECNICAL INFO |
||

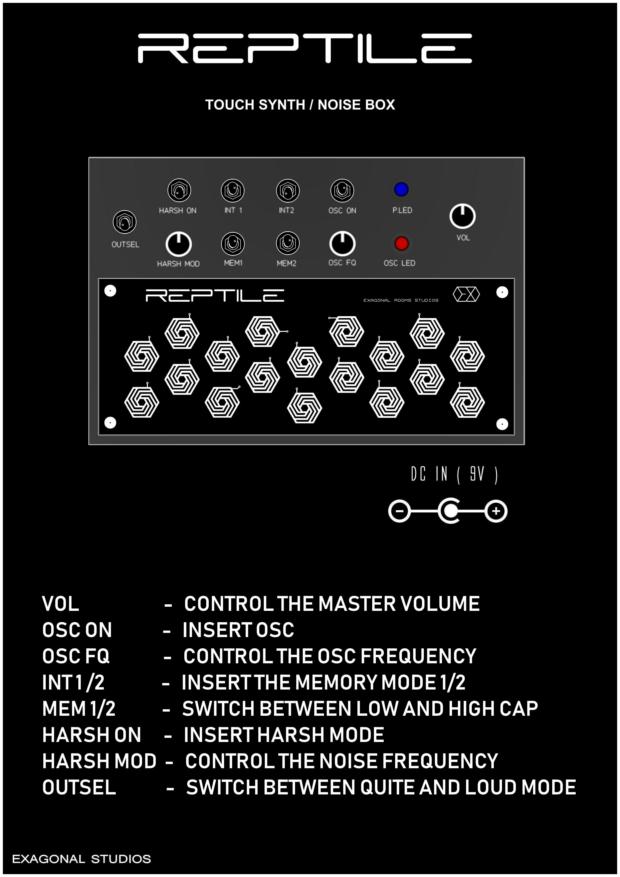

Dimensions: 220 x 150 x 60 mm Standar case : BIOPLASTIC 3D PRINTED CASE Color : BLACK Front panel : 1 power blue led, 1 oscillator red led, 3 knob, 7 switch, 1 touch plate with 18 tactile sensors Rear panel : 1 audio output jack, 1 power switch, 9V DC jack ( CENTER POSITIVE ) |
||
|
VIDEO SAMPLE
1 |
||
|
|
||
|
VIDEO SAMPLE 2 -
( explain part 1 ) |
||
|
|
||
|
VIDEO SAMPLE 3 - ( explain part 2 ) |
||
|
|
||
|
VIDEO
SAMPLE 4 - TRACK |
||
|
|
||
